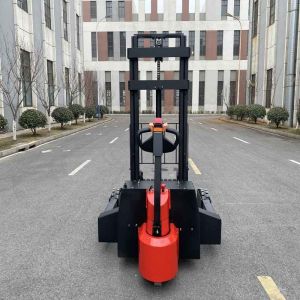

Multifunctional Electric Pallet Stacker AC Drives Strong Climbing Force

Brand Name : YONGJIELI

Model Number : CDD15Y-16

Certification : CE

Place of Origin : Anhui, China

MOQ : 1 SET

Price : $2,470.00~2,999.00 PER PC

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100 SETS PER MONTH

Delivery Time : 10 WORK DAYS

Packaging Details : EXPORT PACKING

Power type : Battery

Tire type : Polyurethane

Mast type : Duplex mast

Steering type : Electronic steering

Parking brake type : Electromagnetic braking

Name : Electric Pallet Stacker

Contact Now

Electric Pallet Stacker AC Drives Strong Climbing Force Optima Batteries Integrated Multifunctional Lever

Advantages:

  • Configuration and performance:
  • Wide angle view, high-strength shock absorption gantry
  • CURITS Brand Drive Control System in the United States
  • Zhongnan Transmission
  • Electronic steering, lightweight, silent
  • Shimadzu brand low noise hydraulic pumps and valves
  • Drive speed compensation short circuit and open circuit protection
  • Electromagnetic and regenerative braking system
  • High and low voltage limits, electrical overheating protection
  • Line fault detection and error code diagnosis
  • Torch brand 48V high capacity lead-acid battery

Security:

  • Automatic deceleration device for bends
  • Drive endless speed regulation
  • Controller multiple automatic protection system
  • Inductive safety seat
  • Cylinder safety shut-off valve
  • EPS AC
  • Low noise hydraulic pump
  • LED front headlights
  • Side pull battery

Name
Power Supply Battery
Driving Mode Walking
Load 1500 kg
Load Center Distance 600 mm
Weight 785 kg
Tyre Material Solid Rubber
Drive Wheel Φ300 mm*80 mm
Load Wheel Φ406 mm*110 mm
Overall Height 2130 mm
MIN. Grounding clearance of Fork 60 mm
Grounding clearance of Lever 1320 mm
Overall Length 1960 mm
Overall Width 1580 mm
Fork Size 1070 mm
Adjustment Range of Fork 240 mm -270mm
Overall Grounding clearance 120 mm
Inner Width of Outriggers 1270 mm
Turning Radius 1555 mm
Driving Velocity (full/idle) 3.5/4.5 Km/h
Lifting Velocity (full/idle) 100/150 mm/s
Driving Velocity (full/idle) 4.8/5.0 Km/h
Lifting Velocity (full/idle) 13/25 mm/s
Climbing Velocity (full/idle) 8%/10%
Brake System Electromagnetic
Drive Motor Power AC 1.5 kw
Lifting Motor Power 2.2 kw
Battery 24V/100AH
Charging Generator 24V/15A


Why choose our products? You can obtian the following advantages:

  • Dual oil cylinders, wide field mast
  • CURTIS brand drive control system in the United States
  • Multifunctional integrated handle
  • Electronic steering, portable
  • Bucher brand low noise hydraulic pump from Germany
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit and long life induction switch
  • Body damping system, pedal and handle damping



Security:

  • Automatic deceleration device for bends
  • Fork automatically decelerates at high position
  • Driving stepless speed regulation
  • Multiple automatic protection systems for controllers
  • Emergency reverse collision prevention/emergency braking device
  • Cylinder safety shut-off valve
